🪝 Events Webhook

The Notification Events Webhook allows you to receive real-time updates about notification events such as delivery, opens, clicks, and unsubscribes. By setting up a publicly accessible API endpoint, you can track and react to these events programmatically.

Why Use Notification Events Webhook

Many organizations need to track notification engagement for various purposes:

• Build custom analytics dashboards to measure notification performance
• Create automated workflows triggered by specific notification events
• Track user engagement with notifications across channels
• Develop complex integrations with other systems based on notification events

How It Works

When specific events occur in the notification lifecycle (such as email opens or clicks), our system sends HTTP requests to your designated endpoint with detailed information about the event.

// Example webhook payload for an email open event
{
  "eventType": "EMAIL_OPEN",
  "trackingId": "abc123",
  "notificationId": "welcome-email",
  "channel": "EMAIL",
  "userId": "user-123"
}

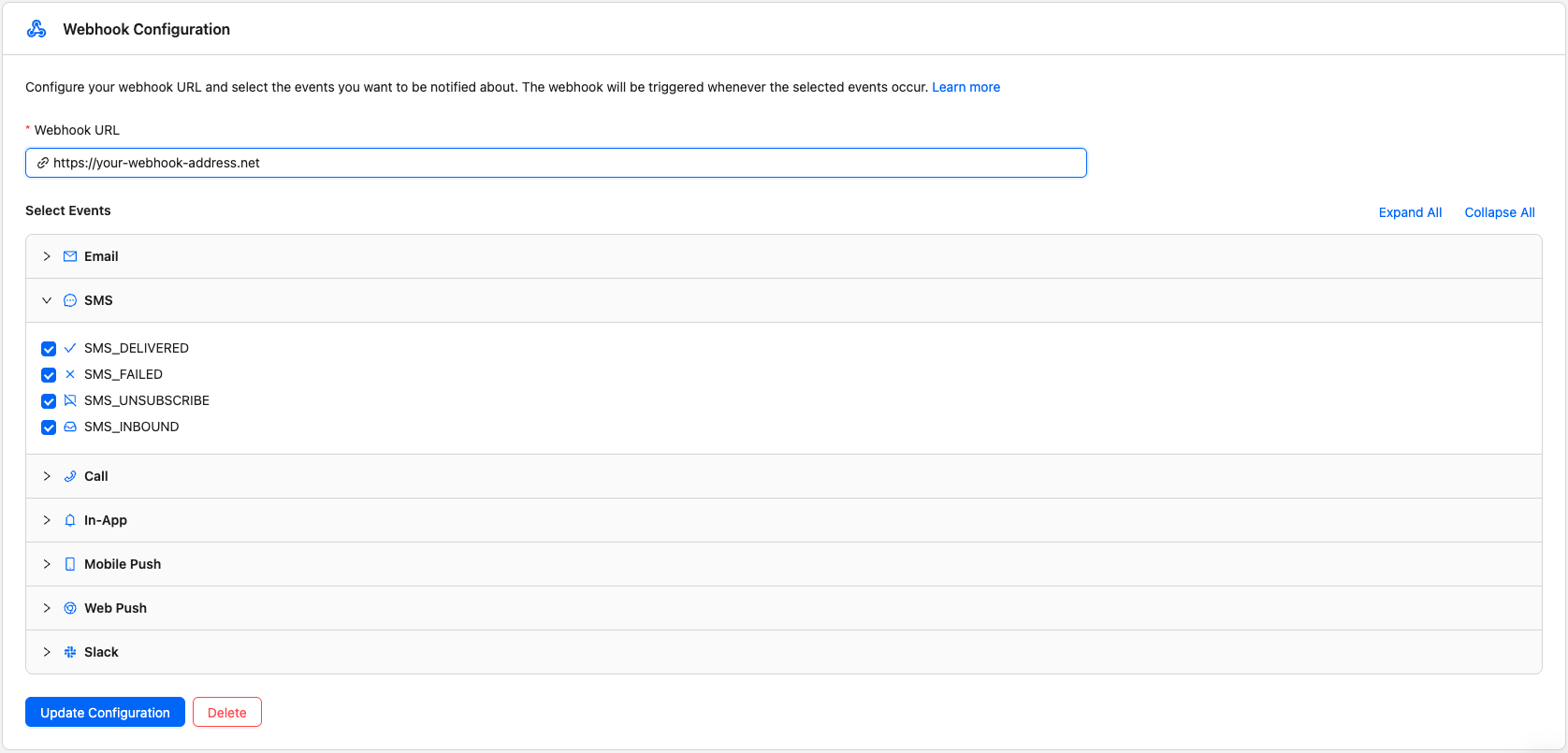

Dashboard Configuration

You can easily configure your webhook endpoints and select which events to track through the Pingram dashboard:

1. Navigate to the “Webhook” section of the Pingram dashboard
2. Enter your webhook URL (e.g., https://your-webhook-url.com)
3. Select the events you want to receive notifications for
4. Click “Save Configuration”

Supported Events

The webhook currently supports the following notification events:

Setting Up Your Webhook

To receive notification events:

1. Create a publicly accessible API endpoint that can receive HTTP POST requests
2. Configure your webhook URL in the Pingram dashboard
3. Select which events you want to receive (EMAIL_OPEN, EMAIL_CLICK, EMAIL_FAILED, SMS_FAILED, etc.)
4. Implement proper validation of incoming webhook requests
5. Process and store the event data as needed for your use case

Return a 2xx HTTP status from your endpoint to acknowledge receipt.

What your endpoint receives

Each event is sent as an HTTP POST with a JSON body. The exact fields depend on the event type. After you send a notification, events are sent to your URL as they occur (e.g. delivered, then open, then click), so you see the full event lifecycle.

Example: EMAIL_DELIVERED

{
  "eventType": "EMAIL_DELIVERED",
  "trackingId": "0192a1b2-c3d4-5e6f-7890-abcd1234ef56",
  "notificationId": "welcome-email",
  "channel": "EMAIL",
  "userId": "user-123"
}

Example: EMAIL_OPEN

{
  "eventType": "EMAIL_OPEN",
  "trackingId": "0192a1b2-c3d4-5e6f-7890-abcd1234ef56",
  "notificationId": "welcome-email",
  "channel": "EMAIL",
  "userId": "user-123"
}

Example: EMAIL_CLICK (includes clickedLink and optionally clickedLinkTags)

{
  "eventType": "EMAIL_CLICK",
  "trackingId": "0192a1b2-c3d4-5e6f-7890-abcd1234ef56",
  "notificationId": "welcome-email",
  "channel": "EMAIL",
  "userId": "user-123",
  "clickedLink": "https://example.com/action",
  "clickedLinkTags": {}
}

Example: EMAIL_FAILED (includes failureCode)

{
  "eventType": "EMAIL_FAILED",
  "trackingId": "0192a1b2-c3d4-5e6f-7890-abcd1234ef56",
  "notificationId": "welcome-email",
  "channel": "EMAIL",
  "userId": "user-123",
  "failureCode": "BOUNCE"
}

Example: EMAIL_UNSUBSCRIBE (no trackingId)

{
  "eventType": "EMAIL_UNSUBSCRIBE",
  "notificationId": "welcome-email",
  "channel": "EMAIL",
  "userId": "user-123"
}

Example: SMS_INBOUND (plain SMS)

{
  "eventType": "SMS_INBOUND",
  "from": "+14155551234",
  "to": "+16505550100",
  "text": "Thanks, that works!",
  "receivedAt": "2026-04-22T12:34:56.789Z",
  "userId": "user-123",
  "lastTrackingId": "0192a1b2-c3d4-5e6f-7890-abcd1234ef56"
}

Example: SMS_INBOUND (MMS—one or more attachments from the carrier)

When the reply includes picture message(s), media is an array of objects with provider-hosted url and optional contentType. Omitted or empty when the message is SMS-only.

{
  "eventType": "SMS_INBOUND",
  "from": "+14155551234",
  "to": "+16505550100",
  "text": "See attached",
  "receivedAt": "2026-04-22T12:34:56.789Z",
  "userId": "user-123",
  "lastTrackingId": "0192a1b2-c3d4-5e6f-7890-abcd1234ef56",
  "media": [
    {
      "url": "https://cdn.hosting...",
      "contentType": "image/jpeg"
    }
  ]
}

Other channels (SMS delivery events, Call, Push, etc.) use the same shape: eventType, trackingId (when applicable), notificationId, channel, userId, and for failure events, failureCode. Inbound SMS uses the dedicated shape above instead of notificationId / channel. See the Supported Events table for all event types.

Verifying Webhooks

To ensure webhook requests are authentic and haven’t been tampered with, Pingram signs every webhook with an HMAC-SHA256 signature.

Why verify webhooks?

Without verification, attackers could:

• Spoof requests — Send fake webhook payloads pretending to be Pingram
• Replay attacks — Resend intercepted valid requests to trigger duplicate processing

Signature headers

Every webhook request includes three headers:

Webhook secret

Your webhook secret is returned when you configure webhooks via the API. The response includes a secret field:

{
  "webhookId": "account123:env456",
  "webhook": "https://your-api.com/webhooks/pingram",
  "events": ["EMAIL_DELIVERED", "EMAIL_OPEN"],
  "secret": "pingram_whsecret_abc123..."
}

Store this secret securely (e.g., in environment variables).

Signature scheme

The signature header has the format v1,{hex-signature} where the signature is computed as:

HMAC-SHA256(trackingId + "." + timestamp + "." + rawBody, secret)

Where:

• trackingId is the value from X-Pingram-Id (same as trackingId in the payload)
• timestamp is the value from X-Pingram-Timestamp
• rawBody is the raw request body as a string (not parsed JSON)
• secret is your webhook secret (format: pingram_whsecret_...)
• The result is hex-encoded

SDK verification (Node.js)

The Pingram SDK provides built-in verification:

import { NextRequest, NextResponse } from 'next/server';
import {
  verify,
  WebhookSignatureError,
  WebhookTimestampError
} from 'pingram/webhooks';

export async function POST(req: NextRequest) {
  try {
    const event = verify({
      payload: await req.text(),
      headers: {
        id: req.headers.get('x-pingram-id')!,
        signature: req.headers.get('x-pingram-signature')!,
        timestamp: req.headers.get('x-pingram-timestamp')!
      },
      secret: process.env.PINGRAM_WEBHOOK_SECRET!
    });

    // Process the verified event
    switch (event.eventType) {
      case 'EMAIL_OPEN':
        console.log('Email opened by:', event.userId);
        break;
      case 'EMAIL_CLICK':
        console.log('Clicked link:', event.clickedLink);
        break;
    }

    return NextResponse.json({ received: true });
  } catch (err) {
    if (err instanceof WebhookSignatureError) {
      return new NextResponse('Invalid signature', { status: 401 });
    }
    if (err instanceof WebhookTimestampError) {
      return new NextResponse('Request expired', { status: 401 });
    }
    return new NextResponse('Bad request', { status: 400 });
  }
}

Manual verification (other languages)

For languages without SDK support, verify webhooks manually:

1. Extract headers — Get X-Pingram-Id, X-Pingram-Signature, and X-Pingram-Timestamp from the request
2. Parse signature — Extract the hex signature from the v1,{signature} format
3. Compute expected signature — HMAC-SHA256(trackingId + "." + timestamp + "." + rawBody, secret), hex-encoded
4. Compare signatures — Use constant-time comparison to prevent timing attacks
5. Check timestamp — Reject requests older than 5 minutes (300 seconds)

Python example:

import hmac
import hashlib
import time

def verify_webhook(payload: str, tracking_id: str, signature: str, timestamp: str, secret: str) -> bool:
    # Check timestamp (reject if older than 5 minutes)
    ts = int(timestamp)
    age = abs(time.time() * 1000 - ts) / 1000
    if age > 300:
        return False

    # Parse signature (extract from v1,{signature} format)
    if not signature.startswith("v1,"):
        return False
    raw_signature = signature[3:]

    # Compute expected signature
    signed_payload = f"{tracking_id}.{timestamp}.{payload}"
    expected = hmac.new(
        secret.encode(),
        signed_payload.encode(),
        hashlib.sha256
    ).hexdigest()

    # Constant-time comparison
    return hmac.compare_digest(expected, raw_signature)

Error classes

The SDK throws specific errors for different failure cases:

• WebhookSignatureError — Signature doesn’t match (invalid secret or tampered payload)
• WebhookTimestampError — Timestamp is outside tolerance (replay attack or clock skew)

FAQ

Q: What is the format of the webhook requests?
A: Webhook requests are sent as HTTP POST requests with JSON payloads containing event details such as eventType, trackingId, notificationId, channel, and userId.

Q: Can I filter which events I receive?
A: Yes, you can select which events to receive (EMAIL_OPEN, EMAIL_CLICK, EMAIL_FAILED, SMS_FAILED, etc.) in the dashboard configuration.

Q: What response should my endpoint return?
A: Your endpoint should return a 2xx HTTP status code to acknowledge successful receipt of the webhook.

Q: When would I receive failure events?
A: You’ll receive channel-specific failure events (EMAIL_FAILED, SMS_FAILED, CALL_FAILED, etc.) whenever a notification fails to deliver through the respective channel. This could happen for various reasons like invalid recipient details, network issues, service provider failures, or user-specific delivery problems. These events help you track delivery failures across specific notification channels. The failureCode field in the payload provides a specific error code indicating the reason for the failure.

Q: Can I delete or update my webhook configuration?
A: Yes, you can update your webhook URL or selected events at any time from the dashboard. You can also delete your webhook configuration if you no longer need it.
